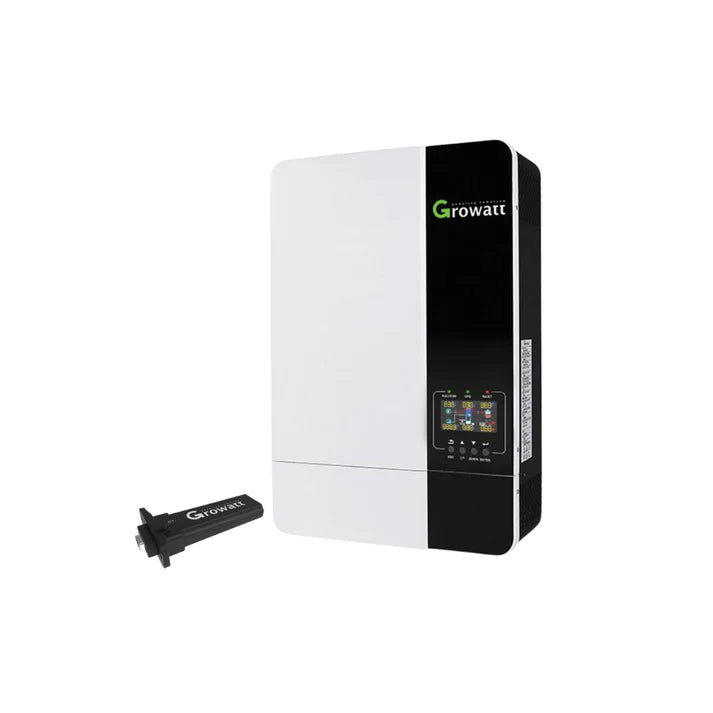

5KW Growatt ES Lite 48V Hybrid Inverter 100A MPPT

Integrated MPPT charge controller for optimised solar harvesting

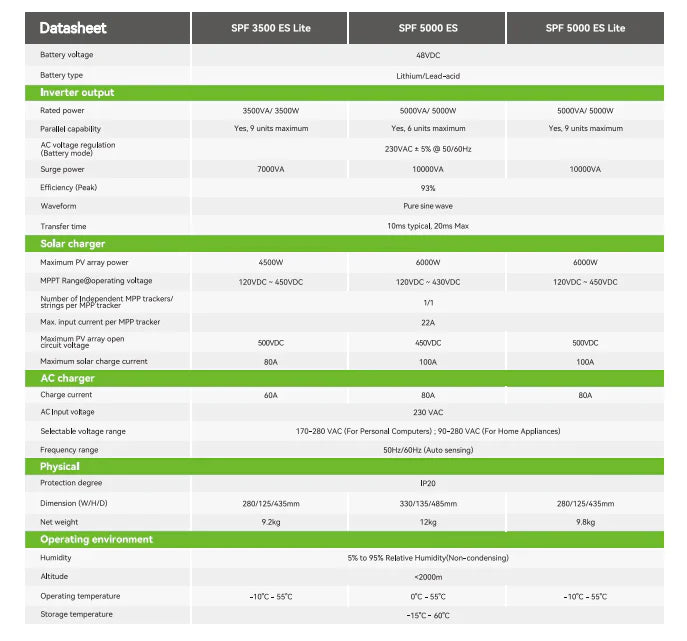

Max PV array power: 6000W

MPPT operating voltage range: 120–450VDC

Max PV open circuit voltage: 500VDC

Max solar charge current: 100A

Energy Management and Control

Configurable grid or solar priority settings to match site requirements

Flexible scheduling for customised battery charge and discharge times

Equalisation charging function to support battery health

Configurable inverter operating modes

Scalability

Parallel capability: up to 9 units

Physical Specifications

Dimensions: 650 x 550 x 220 mm

Weight: 12 kg

Warranty and Installation Requirements

Warranty: 2 years
